USAR Shoring Kit
Shoring
Table is horizontally scrollable
| Qty | Model | Length (in) | Weight (lbs) |  |
|---|---|---|---|---|
| 6 | PRO-1 | 21.5 – 26.5 | 15 / 90 | |
| 6 | PRO-2 | 29.5 – 41 | 18 / 108 | |
| 6 | PRO-3 | 42.5 – 67 | 24 / 144 | |
| 6 | PRO-4 | 63.5 – 105 | 32 / 192 |

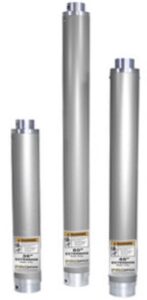

EXTENSIONS
Table is horizontally scrollable
| Qty | Model | Length (in) | Weight (lbs) |  |
|---|---|---|---|---|
| 6 | E12 | 12 | 5 / 30 | |
| 6 | E24 | 24 | 8 / 48 | |
| 6 | E36 | 36 | 12 / 72 | |
| 6 | E48 | 48 | 16 / 96 |
RAKER RAIL / GANTRY / COLUMN COMPONENTS
Table is horizontally scrollable
| Qty | Model | Description | Weight (lbs) |   |
|---|---|---|---|---|
| 4 | PRO-RR5 | Raker Rails 5′ (set of 2) | 52 / 208 | |
| 4 | PRO-RRSPL | Raker Rail Splice (Joins Rails) | 5 / 20 | |
| 8 | PRO-RRSA | Raker Rail Shoring Adapter | 4 / 32 | |
| 4 | PRO-RRNB | Raker Rail Nailing Block | 6 / 24 | |
| 2 | PRO-BP10 | Base Plate | 11 / 22 | |
| 4 | PRO-RRBP | Raker Rail Base Plate | 15 / 60 | |

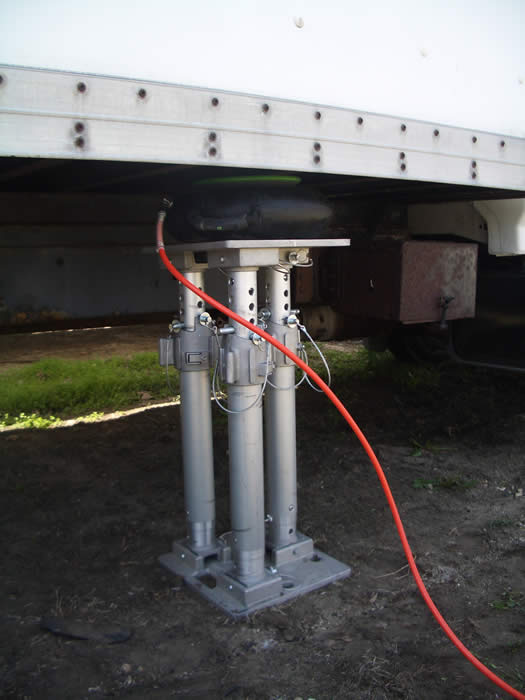

| 4 | PRO-GCPLT | Gantry/Column Plate | 25 / 100 | |
| 2 | PRO-COLSA | Column Shoring Adapters (set of 6) | 12 / 24 |
END ATTACHMENTS
Swivel Base
PRO-SEA
Qty (9) 3/27
Non-Swivel Base
PRO-NSEA
Qty (9) 4/36
Swivel Wale Plate
PRO-WPSE
Qty (16) 7/112
L-Channel Beam Support
PRO-L
Qty (6) 3/18
U-Channel Beam Support
PRO-UC46
Qty (6) 4/24
Hose Assembly w/ 1B-Thumb Control
PRO-HA1B
Qty (1) 9
Air Supply Assembly w/ 1B-Thumb Control High-Pressure Regulator
PRO-ASA
Qty (1) 15
Raker Rail Baseplate
PRO-RRBP
(Qty 4) 17/68

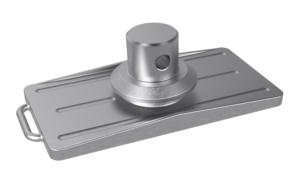

Baseplate
PRO-BP10
(Qty 2) 11/22
Lowering Straps (2)
PRO-LS
(Qty 8) 1/8

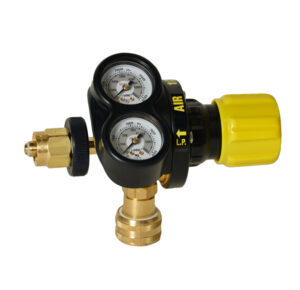

High-Pressure Regulator May be Required
Total Estimated Weight of Kit: 1,750 lbs. (794 Kilograms)
